When a crack shows up in your foundation, a floor starts to slope, or a storm leaves you wondering whether your building is still sound, the question is rarely “is something wrong?” — it’s “how serious is it, and who can tell me for sure?” That is what a structural engineer inspection is for.

Curva Consultants provides structural inspections and assessments for homes, commercial buildings, and industrial facilities throughout Green Bay, Manitowoc, and the surrounding Northeast Wisconsin communities. Here is what an inspection actually involves, when you need one, and how it differs from the home inspection you may already have scheduled.

What a structural engineer inspection is

A structural engineer inspection is a focused evaluation of a building’s load-bearing systems — foundation, framing, beams, columns, walls, and roof structure — performed by a licensed professional engineer. The inspection ends in a written engineering report: what was observed, what it means for the safety and stability of the structure, and what should happen next.

Because Curva Consultants is an engineering practice, not a repair contractor, the assessment is independent. The report is not a sales pitch for repair work — it is a professional opinion you can hand to your contractor, your lender, your insurance carrier, or a building official.

When to bring in a structural engineer

Common situations where an inspection is the right move:

• Foundation cracks. Not every crack is a problem — but some are. Horizontal cracks, stair-step cracking in block walls, cracks that are widening over time, or cracks paired with bowing or leaning walls deserve a professional look. An engineer can distinguish normal shrinkage from active movement.
• Sagging floors or rooflines. Sloping, bouncing, or visibly deflected framing can signal an overloaded or compromised member.
• Before buying a property. A pre-purchase structural assessment tells you what you are actually buying. This is especially worthwhile for older homes, buildings with visible settlement, or properties a standard home inspection has already flagged.

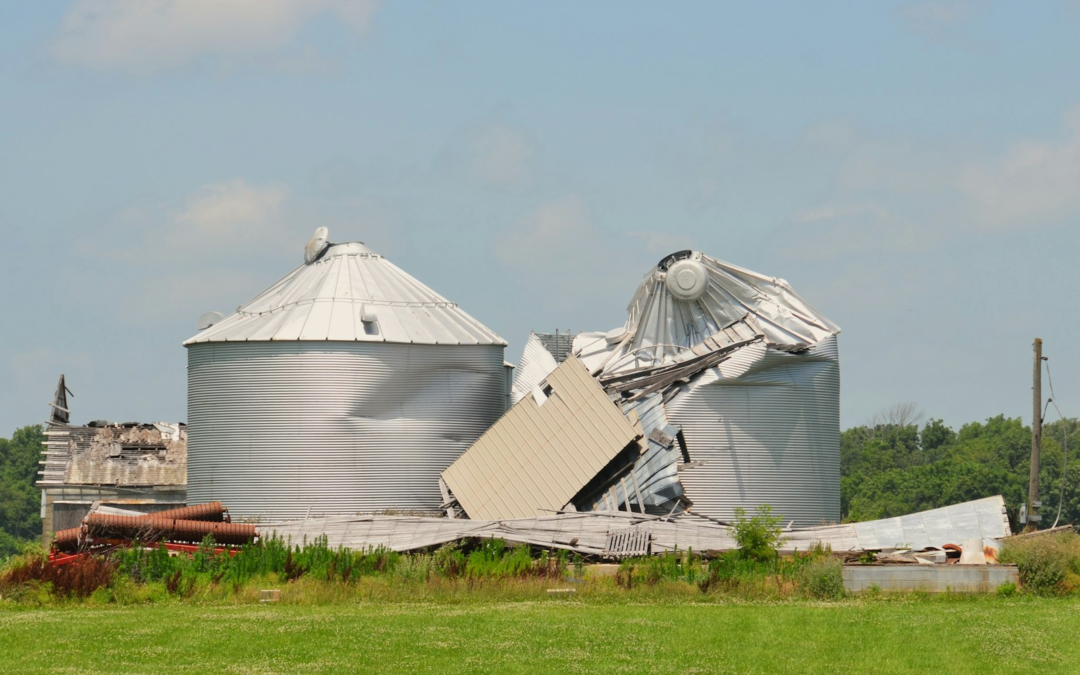

• Storm, fire, or impact damage. After high winds, heavy snow, flooding, fire, or an impact such as a vehicle strike, an engineer can determine whether the structure was compromised and document the damage properly. Curva Consultants’ forensic engineering practice specializes in exactly this kind of investigation.
• Before a renovation. Planning to remove a wall, cut a new opening, add a story, or install heavy equipment such as a mezzanine? An engineer confirms what is load-bearing and designs the fix before anything is cut.
• Insurance claims. If structural damage is part of an insurance claim, you are allowed to hire your own engineer to evaluate the damage — you do not have to wait for one to be assigned to you. An independent engineering report documents the cause and extent of damage in terms a carrier can act on.

Foundation inspections: what the engineer looks for

Foundation concerns are the most common reason property owners in Green Bay and Manitowoc call. Wisconsin’s freeze-thaw cycles, clay soils, and spring water tables all work on foundations over time. During a foundation inspection, the engineer evaluates the type and pattern of cracking, signs of settlement or heaving, wall bowing or rotation, water intrusion paths, and how the foundation interacts with the framing above it.

The goal is a clear answer: is this cosmetic, is it stable but worth monitoring, or is it active movement that needs correction — and if so, what kind?

What happens during the inspection

A typical structural inspection with Curva Consultants works like this:

1. A conversation first. What have you observed, when did it start, and what is the history of the building?
2. The site visit. The engineer examines the areas of concern and the load path around them — foundation, framing, connections — taking measurements and photographs as needed.
3. Analysis. Where the situation calls for it, the engineer reviews available drawings and runs structural calculations.
4. The written report. You receive a documented professional assessment: observations, conclusions, and recommendations, prepared by a licensed Wisconsin professional engineer.

Structural engineer inspection vs. home inspection

A home inspection is a broad, general review of a property’s overall condition — roof surface, plumbing, electrical, HVAC, and more. It is valuable, but it is not an engineering evaluation, and most home inspectors will tell you exactly that: when they see something structural they don’t like, their standard advice is “have a structural engineer evaluate this.”

A structural engineer inspection is that next step — a deeper, focused analysis of the structure itself, backed by engineering calculations and a licensed engineer’s professional judgment. If you already have a home inspection report flagging a structural concern, that report is a useful starting point for the engineering assessment.

Serving Green Bay, Manitowoc, and Northeast Wisconsin

Curva Consultants performs structural inspections and assessments from offices in Green Bay and Manitowoc, serving the Fox Valley and Lakeshore region — including De Pere, Ashwaubenon, Howard, Suamico, Allouez, the Appleton area, and the Sheboygan area.

To schedule an inspection or talk through what you’re seeing, call 866-455-0155 or contact Curva Consultants.

Frequently asked questions

Do I need a structural engineer or a home inspector?

If you want a general condition review of a whole property, start with a home inspector. If there is a specific structural concern — cracking, sagging, damage, or a planned modification — you need a structural engineer. The engineer’s report carries the professional analysis that lenders, insurers, and building officials look for.

Can I hire my own structural engineer for an insurance claim?

Yes. Building owners can hire an independent engineer directly to evaluate and document structural damage for a claim. Curva Consultants provides insurance claim support as part of its forensic engineering services; note that an engineer evaluates damage — a claims adjuster determines coverage.

Is every foundation crack serious?

No. Many cracks are cosmetic shrinkage. The ones that warrant an engineer’s evaluation are cracks that are horizontal, widening, stepped through block walls, or accompanied by bowing walls, sticking doors, or sloping floors. If you’re unsure which kind you have, that is exactly the question an inspection answers.

What do I get at the end of an inspection?

A written engineering report documenting what was observed, the engineer’s professional conclusions about the structure, and recommendations for next steps — suitable for your own records, a contractor, a carrier, or a municipality.

Designing Mezzanines & Equipment Platforms: A Structural Engineer’s Guide to Loads, Vibration, and Expansion Planning

Feb 9, 2026 | Beyond the Blueprint

Designing Mezzanines & Equipment Platforms: A Structural Engineer’s Guide to Loads, Vibration, and Expansion Planning

In industrial, manufacturing, and agricultural facilities, mezzanines and equipment platforms are a fast, flexible way to add capacity without expanding the building footprint. But smart design hinges on understanding loads, vibration, and expansion planning—and knowing when a structural engineer should lead the effort. This guide explains the decisions that control safety, performance, and long-term value so you can plan a platform that works on day one and scales with your operation.

Mezzanine or Equipment Platform? Why the Definition Matters

Before you sketch a grid, confirm what you’re building under your applicable code.

• Mezzanine: An intermediate level between floor and ceiling that is open to the space below and limited in area (per the International Building Code). Mezzanines may have restrictions on size, openness, and how they count toward building area and occupant load.
• Equipment platform: An elevated area dedicated to mechanical or process equipment. These are often treated differently from mezzanines in terms of egress, openness, and area limits, but must still meet structural and safety requirements.

Getting this definition right influences fire protection, egress, sprinkler coverage, allowable area, and whether you can stack storage. Early code review with your Authority Having Jurisdiction (AHJ) and a structural engineer can save costly redesigns.

The Load Cases That Control Design

Mezzanine and platform failures almost always trace back to misunderstood or evolving loads. Your design loads should be documented, traceable to a standard, and reflected on drawings and placards.

• Dead load: Self-weight of framing, decking, guards, concrete toppings, and fixed equipment.
• Live load: People, movable storage, small mobile equipment, and transient construction loads during maintenance. Typical live loads vary by use—manufacturing and storage areas often range higher than office uses. Confirm with ASCE 7 and your local code.
• Storage loads: If you store materials, your live load may be significantly higher. Identify storage type (palletized, racked, bulk, bagged, liquids) and its distribution.
• Concentrated/point loads: Pallet rack post reactions, tank legs, skids, column bases for equipment, vertical vessel saddles, and hoist points can govern beam sizes and local deck reinforcement.
• Rolling loads: Pallet jacks, carts, and AGVs introduce dynamic effects and wheel concentrations. Forklifts on mezzanines are typically prohibited unless the structure and decking are explicitly designed for them.
• Impact and vibration: Conveyors, hoists, crushers, shakers, or rotating equipment add dynamic loads. Include impact factors and isolation as required by standards and OEM data.
• Lateral loads: Guardrails, kickplates, gates, and ladder cages carry prescribed line and point loads. Seismic loads (ASCE 7) apply to the platform and to anchored equipment. Wind loads may apply to exterior platforms and cladding.
• Stairs and egress components: Stairs and landings must meet specific live and concentrated loads, guard/handrail forces, riser/tread geometry, and slip resistance per code.

Don’t forget construction and maintenance loads—equipment swaps, jacking, or temporary rigging can exceed day-to-day service loads. Place load placards at access points and keep them current.

Slabs, Footings, and Anchorage: The Hidden Limiters

The capacity beneath your columns often governs feasibility:

• Existing slabs: Many industrial slabs are designed for floor loads, not column reactions. A column bearing on a 6-inch slab can punch through if loads aren’t distributed. Plan for isolated footings, grade beams, or load-spreading base plates where needed.
• Joints and utilities: Avoid placing columns on or across slab joints, trenches, utility chases, or areas with unknown fill. Ground-penetrating radar can help locate embedded conduits.
• Anchors: Select anchors (mechanical or adhesive) based on cracked/uncracked concrete, seismic category, temperature, and edge distances. Follow ICC-ES approvals and manufacturer data.
• Settlement and differential movement: In agricultural environments or older buildings, soil variability can drive differential settlement—consider preloading, larger footings, or continuous supports.

A structural engineer will compute column reactions, check existing capacity, and design appropriate foundations or reinforcing to ensure long-term stability.

Vibration and Serviceability: Not Just a Comfort Issue

Even when strength checks pass, platforms can feel bouncy or disrupt production if vibration and deflection aren’t controlled.

• Human-induced vibration: Footfall frequency typically ranges from 1.5–3 Hz; platforms with low fundamental frequencies feel lively. Increasing stiffness, shortening spans, or adding secondary beams can raise natural frequencies and reduce perceptibility.
• Machine-induced vibration: Match the platform’s natural frequency away from operating frequencies of motors, fans, shakers, or centrifuges (aim for adequate separation to avoid resonance). Use isolation pads, inertia bases, or tuned mass dampers where appropriate.
• Serviceability criteria: Limit deflection under service loads to prevent misalignment, spilled product, or nuisance vibrations. Choose stiffer criteria where sensitive equipment, tight tolerances, or brittle finishes are present.
• Connections and details: Loose or slip-critical bolted joints can rattle; specify appropriate bolt types, pre-tensioning, and deck fasteners. Continuous load paths reduce squeaks and rumbles.

For conveyor platforms, consistent stiffness across supports helps maintain belt tracking and sensor alignment. For labs or precision agriculture processing, tighter vibration criteria may be necessary.

Material Choices and Decking Options

Your framing and decking choices influence stiffness, fire performance, corrosion resistance, and hygiene.

• Structural steel framing: Rolled shapes, HSS, and open-web joists are common for long spans and speed of erection. Hot-dip galvanizing or high-performance coatings improve durability in washdown, fertilizer, or feed environments.
• Decking:
  • Concrete-on-metal deck: Provides stiffness, vibration control, and fire resistance; heavier and slower to install.
  • Bar grating: Great for drainage and visibility, common in processing and ag facilities; consider toe clearance and object drop hazards.
  • Checkered/tread plate: Durable walking surface; verify slip resistance and deflection limits.
  • Composite panels or FRP: Useful in corrosive or chemical-heavy areas; verify fire and structural ratings.
• Slip resistance and hygiene: Specify textured finishes, anti-slip coatings, or gritted FRP for wet or dusty conditions. In food/ag spaces, seamless, cleanable surfaces and coved transitions reduce harborage points.
• Fire protection: Coordinate with the fire protection engineer and AHJ. Platform decking can obstruct sprinklers below; in-rack or under-deck sprinklers, draft curtains, or fireproofing may be required based on storage class and commodity.

Egress, Safety, and Operations

Platform safety integrates with how your team works every day.

• Stairs, ladders, and catwalks: Choose widths, rises, and landings to suit traffic and codes. Consider alternating-tread devices only for limited, maintenance-only access if permitted by code.
• Guardrails, midrails, and toeboards: Ensure code-compliant heights, loads, and small-object containment if tools or parts are used overhead.
• Gates and pallet drop zones: Use self-closing swing or pivot gates to prevent edge exposure during loading. Coordinate with material handling equipment widths and clearances.
• Openings and penetrations: Frame around chutes, ducts, and cable trays with reinforced edges and covers. Mark edges with high-visibility nosing.
• Lighting and signage: Provide uniform lighting, photoluminescent egress markings if required, and conspicuous load placards indicating live load limits and restricted equipment.

In agricultural settings, also consider corrosion from fertilizers and silage acids, exposure to moisture and dust, and equipment cleanout practices that may add temporary loads.

Expansion and Future-Proofing

If your platform works only for today’s process, you’ll be changing steel again tomorrow. Plan for growth on day one.

• Modular grid: Use a repeatable column spacing (e.g., 10×20 feet or 12×24 feet) aligned to aisles, doorways, and equipment flows to minimize future rework.
• Reserve capacity: Where budget allows, design primary beams and columns for a modest capacity increase or a heavier live load class. Document reserve capacity on as-built drawings.
• Knock-out locations: Pre-drill or mark future bolt holes and removable infill panels for conveyor extensions, hatches, or future stairs.
• Utilities corridors: Dedicate chases for power, controls, and process piping with extra capacity. Avoid ad-hoc penetrations that weaken the deck.
• Demountable connections: Bolted, slip-resistant connections and standardized base plates speed reconfiguration and relocation.
• BIM and digital twins: Capture as-built geometry, loads, and connection details to streamline future modifications and permit submittals.

A structural engineer can model “what-if” scenarios—like a second equipment line or heavier totes—so you understand cost deltas for building in flexibility now versus retrofitting later.

Seismic, Wind, and Environmental Considerations

• Seismic: Classify the platform properly under ASCE 7 and design anchorage for both the structure and attached equipment. Check drift compatibility with adjacent structures and ensure bracing does not over-stiffen or overload the supporting building frame.
• Wind: Exterior platforms, stairs, and cladding must resist wind pressures and vortex shedding where applicable. Guard and screen walls add considerable sail area—brace accordingly.
• Thermal and corrosion: In unconditioned spaces or agricultural applications, account for thermal movement with slotted connections, and select coatings or galvanizing for longevity. Avoid dissimilar metal corrosion at fasteners.

Procurement, Scheduling, and When to Hire a Structural Engineer

The earlier you involve a structural engineer, the more options you’ll have—and the fewer surprises you’ll face during installation.

• When to engage:
  • Before purchasing pre-engineered mezzanine kits for nonstandard loads, seismic regions, or when tying into an existing building.
  • When supporting dynamic equipment, tanks, hoists, or conveyors.
  • If your slab’s capacity is unknown or you’re adding significant concentrated loads.
  • In high-corrosion, washdown, or temperature-cycling environments.
• What to include in the RFP:
  • Intended use, live load targets, and any storage or rack layouts.
  • Equipment weights, dynamic characteristics, anchor requirements, and OEM drawings.
  • Vibration criteria and acceptable deflection limits.
  • Seismic/wind design criteria and target building performance.
  • Fire protection requirements and egress strategy.
  • Future expansion scenarios and preferred grid modules.
  • Existing slab data (thickness, reinforcement, joints), geotech info, and as-built drawings.
• Deliverables:
  • Stamped calculations and drawings, anchor schedules, and load placards.
  • Erection procedures, temporary bracing requirements, and special inspection hold points.
  • As-built documentation capturing reserved capacity and future-ready features.

To reduce lifecycle costs and schedule risk, hire a structural engineer who routinely works with industrial mezzanines and equipment platforms and can coordinate with OEMs, material handling vendors, and fire protection teams.

A Quick Pre-Design Checklist

• Define: Mezzanine or equipment platform? Confirm code path with the AHJ.
• Document: Live load, storage load, and all point/rolling/dynamic loads. Get OEM data.
• Verify: Slab capacity, anchors, and footing needs before issuing purchase orders.
• Control: Vibration and deflection criteria aligned with operations and equipment.
• Plan: Egress, guards, gates, lighting, and load placards.
• Protect: Fire, corrosion, and environmental exposure strategies.
• Future-proof: Modular grid, reserve capacity, knock-outs, and utility corridors.
• Coordinate: Early and often—with your structural engineer leading the structural scope.

Conclusion

Well-designed mezzanines and equipment platforms are more than steel and deck—they’re strategic assets that support throughput, safety, and growth. By defining loads carefully, managing vibration, and planning for expansion, you’ll build a platform that serves your operation for years. If you’re evaluating options or facing unique loads or environments, hire a structural engineer early to align code, performance, and budget from the start.

Q1: What’s the difference between a mezzanine and an equipment platform, and why does it matter? A1: Under building codes, a mezzanine is an intermediate floor open to the space below with area limits; an equipment platform serves mechanical/process equipment and follows different egress and openness rules. Getting the definition right affects sprinklers, fire ratings, occupant load, and storage allowances. Confirm early with the AHJ and your structural engineer.

Q2: What loads must a mezzanine or equipment platform be designed to support? A2: Design must capture dead load, live load, storage load, concentrated point loads from racks or tanks, rolling loads, impact and vibration from machinery, and lateral, seismic, and wind effects. Use ASCE 7 guidance, document design loads, and post placards. A structural engineer will quantify column reactions and critical dynamic factors.

Q3: How do I control vibration and deflection on mezzanines with sensitive equipment? A3: Vibration control is a serviceability issue that shapes user comfort and equipment performance. Raise natural frequencies by shortening spans or stiffening members, separate platform/operating frequencies to avoid resonance, and add isolation pads or inertia bases. Specify tighter deflection limits where precision is required, and detail connections to minimize rattle.

Q4: What slab, footing, and anchorage checks are critical before installing a mezzanine? A4: Column reactions often exceed slab capacity. Verify slab thickness, reinforcement, and joints; avoid utilities and trenches; and design isolated footings, grade beams, or larger base plates as needed. Select ICC-ES anchors for cracked concrete and seismic demands. Use GPR for embedded items, and consult a structural engineer early.

Q5: Which materials and decking options work best for industrial platforms? A5: Choose framing and decking for stiffness, durability, and hygiene. Steel shapes or joists are common; add galvanizing or coatings in corrosive or washdown areas. Deck options include concrete-on-metal deck, bar grating, tread plate, and FRP. Address slip resistance, cleanability, fire protection, and sprinkler coordination beneath and above the deck.

Q6: How can I plan a mezzanine for future expansion and reconfiguration? A6: Future-proof by using a modular grid, documenting reserve capacity, and planning knock-out panels for openings, stairs, or conveyor extensions. Provide oversized utility corridors, demountable bolted connections, and accurate as-builts or a digital model. These steps cut retrofit costs and downtime as processes scale or layouts change.

Q7: When should I hire a structural engineer for a mezzanine or equipment platform? A7: Engage early if loads are nonstandard (storage, tanks, hoists), equipment is dynamic, you’re in a seismic region, the slab’s capacity is unknown, or you’re tying into the building frame, fire protection, or egress. Hire a structural engineer to deliver stamped calculations, anchor designs, vibration criteria, and future-ready details.

Related Reading

• Designing for Dynamic Loads: A Structural Engineer’s Guide to Fitness Facilities
• Structural Engineering Services in Manitowoc, WI

Tenant Improvements That Require a Structural Engineer (Restaurants, Gyms, Retail, Offices)

Feb 2, 2026 | Beyond the Blueprint

Structural Engineering: Mezzanine & Platform Design Guide

Tenant improvements in single- or multi-tenant commercial spaces can seem straightforward—move some walls, add equipment, refresh finishes. But many scopes trigger a structural review, and missing these triggers can stall permits, increase costs, or create safety risks. Knowing when to involve a structural engineer—and how to plan for their role—keeps your restaurant, gym, retail, or office project on time and compliant.

Why Tenant Improvements Can Trigger Structural Review

Even without expanding a building’s footprint, tenant improvements (TIs) can change how loads are applied to structures or how the lateral force-resisting system performs. Typical triggers include:

• Increases to gravity loads (live and dead)
• New penetrations or removals affecting load paths
• Added rooftop equipment or screens
• Seismic/wind anchorage of equipment and fixtures
• New mezzanines, stairs, and openings
• Change of occupancy or risk category
• Modifications near shear walls, collectors, or moment frames

If your scope changes how the building carries loads—vertically or laterally—expect a structural review. That’s the right time to hire a structural engineer.

Key Code Concepts That Drive Structural Review

While your local jurisdiction and adopted codes govern specifics, these common themes apply:

• Change of Use/Occupancy: Shifting from office to assembly (e.g., a large restaurant) or from office to retail can increase live loads and occupant loads. That can trigger strengthening or verification of existing framing.
• Live Load Categories: Offices are often 50 psf; retail can be 75 psf; assembly areas may be 100 psf; storage and file rooms can run 125–300 psf. Reallocating areas to heavier categories typically requires structural analysis.
• Equipment and Superimposed Loads: Rooftop units, walk-in coolers, commercial kitchen hoods, data/server racks, large signage, and storage racking can add significant point and distributed loads that the original design didn’t anticipate.
• Lateral System Considerations: Removing walls, cutting new openings, or changing cladding/storefronts can affect shear walls, collectors, or diaphragm action. Seismic anchorage of nonstructural components (e.g., RTUs, ducts, racks) is often required.
• Penetrations and Openings: Cutting slab trenches for plumbing, new stair openings, or roof penetrations for hoods/vents can disrupt load paths and demand structural reinforcing.
• Risk Category Changes: Large assembly occupant loads (e.g., a big restaurant or fitness center) can increase the building’s risk category, affecting design criteria for elements within the tenant space.

Because thresholds and interpretations vary, confirm with the Authority Having Jurisdiction (AHJ) and involve a structural engineer early.

Common TI Scopes That Typically Need Structural Input

• Mezzanines and Platforms: Any new or expanded mezzanine almost always requires analysis, detailing, and permitting—and seismic/wind bracing for guardrails, stairs, and equipment.
• New Openings: Slab, wall, and roof openings for stairs, elevators, hoods, skylights, or ducts usually require reinforcing and sealed calculations.
• Heavy Equipment: Rooftop HVAC, kitchen equipment, walk-in coolers/freezers, data center gear, and battery/UPS systems often exceed assumed loads and need framing checks and anchorage.
• Storage and High-Density Areas: File rooms, retail stock rooms, and racking systems change live load demands and need review.
• Demising/Interior Wall Changes: Removing or altering walls that may provide diaphragm support or lateral resistance can necessitate structural evaluation.
• Storefront and Facade Modifications: Larger openings, folding doors, or heavier glazing systems alter loads and may reduce lateral stiffness.
• Suspended Loads: Hoods, ceiling clouds, TRX rigs, climbing walls, basketball goals, and display features require engineered anchorage to structure—not just to ceilings.
• Signage and Screens: Parapet-mounted signs, roof screens, and large interior signage introduce wind/seismic demand and point loads.

Occupancy-Specific Watchlists

Restaurants

• Rooftop Units and Kitchen Hoods: Heavier RTUs for make-up air and exhaust require curb framing checks and seismic/wind anchorage.
• Hood Supports and Duct Shafts: Long grease ducts need braced supports; roof penetrations demand localized reinforcing.
• Walk-In Coolers/Freezers: Significant point loads; verify slab or mezzanine capacity and anchorage.
• Bar Die Walls and Equipment Lines: Concentrated loads from stone tops or equipment lines can exceed floor capacity if not planned.
• Floor Trenches and Sinks: Cutting for plumbing requires slab and beam review; coordinate with structural for sawcuts and reinforcing.
• Outdoor Dining Structures: Canopies, deck platforms, and heaters need review for loads and anchorage.

Gyms and Fitness Spaces

• Live Load Increase: Fitness areas, group studios, and bleachers often exceed typical office loads; assembly areas increase occupant load.
• Heavy/Dynamic Equipment: Free weights, racks, turf sleds, treadmills in clusters, and reformers create focused loads and vibration issues.
• Suspended Systems: TRX rigs, boxing bags, aerial silks, and climbing walls need engineered anchors and fall protection considerations.
• Sports Fixtures: Basketball goals, net posts, and wall pads tie into structure and often require reinforcing.
• Rooftop Ventilation: Larger air changes for gyms mean heavier RTUs and seismic anchorage.

Retail

• Stock Rooms and Racking: High-density storage and tall racks affect live loads and require anchorage per seismic/wind criteria.
• Storefront Changes: Larger openings or new doors can reduce lateral stiffness—often overlooked in fast-track rollouts.
• Feature Displays and Signage: Heavy millwork, suspended features, and large signs need engineered attachment.
• Floor Safe/ATMs: Point loads from safes or kiosks require local slab/foundation checks.

Offices

• Demountable vs. Full-Height Partitions: Many buildings include an allowance (e.g., 15–20 psf) for partitions; verify before adding many full-height or masonry partitions.
• File Rooms and Libraries: High-density shelving commonly exceeds office live loads—requires strengthening or relocation to lower levels.
• Data/IT Areas: Server racks, UPS, batteries, and raised floors increase loads and need anchorage.
• Stairs, Floor Openings, and New Doors: Any structural openings call for design, detailing, and inspections.

Single vs. Multi-Tenant Considerations

• Shared Roof Capacity: Multiple RTUs across tenants can exceed allowable roof loads; a structural engineer should map equipment zones and confirm cumulative capacity.
• Demising Walls and Lateral Continuity: Some demising or corridor walls may act as shear or collector elements; altering them can impact the building’s lateral system.
• Vibration and Noise Transmission: Fitness or heavy equipment adjacent to office/retail tenants may require structural isolation strategies.
• Signage and Parapets: Competing parapet signage can overload framing; coordinate loads across tenants to avoid conflicts.
• Penetrations Through Common Elements: Roof and slab penetrations for one tenant may affect fire/life safety and structural paths throughout the suite stack; coordinate across leases and with the landlord’s base-building engineer.

When to Hire a Structural Engineer—and What They Do

Engage a structural engineer early—ideally during test fits or schematic design—whenever your scope might:

• Increase live or dead loads
• Add rooftop equipment or screens
• Create openings or remove walls
• Introduce suspended loads or special anchorage
• Change occupancy/use or add a mezzanine

A structural engineer will:

• Review existing drawings and perform site verification
• Establish design criteria (live loads, wind, seismic, risk category)
• Analyze framing and lateral systems for proposed changes
• Design reinforcing, equipment curbs, openings, and anchorage
• Provide stamped drawings/calculations for permit
• Coordinate with MEP and architect to avoid conflicts
• Support special inspections and closeout documentation

For small TI scopes, expect focused calculations and details; for larger or multi-tenant projects, anticipate a phasing plan and broader coordination.

Permitting and Documentation Tips

• Start with As-Builts: Gather structural drawings, past TI documents, and any rooftop equipment logs from the landlord. If unavailable, plan for selective exploration.
• Define Loads Early: Get accurate weights for equipment, racks, signage, and millwork—actual submittals often differ from “typical” blocks.
• Coordinate Roof Work: Plan penetrations and RTU locations with framing lines in mind. Avoid joist seats, collectors, or moment frames without engineered solutions.
• Detail Anchorage: Seismic/wind anchorage details for RTUs, ducts, racks, hoods, and suspended features are commonly required for permit.
• Consider Special Inspections: Many jurisdictions require special inspections for structural steel, anchors, adhesive fasteners, and welds—budget time and cost.
• Communicate with the AHJ: Pre-application meetings help clarify whether your TI triggers structural review and what submittals are required.

Quick Pre-Design Checklist

Use this checklist to decide if you should hire a structural engineer:

• Adding or relocating rooftop equipment, screens, PV, antennas, or large signage
• Creating new openings in slab, roof, or walls (stairs, ducts, hoods, skylights)
• Planning mezzanines, platform lifts, or new stairs
• Introducing suspended features (hoods, rigs, clouds, displays, goals)
• Increasing loads (racking, file rooms, safes, server rooms, walk-in coolers)
• Removing/altering demising or interior walls that might brace diaphragms
• Changing use/occupancy to assembly, retail, or higher-load categories
• Combining or subdividing suites that affect load distribution or lateral continuity

If you check any box above, hire a structural engineer early to validate feasibility and streamline approval.

Bottom Line

Most costly TI surprises arise from underestimated structural impacts: heavier loads, altered load paths, and missed anchorage details. For restaurants, gyms, retail, and offices—especially in multi-tenant settings—the safest path is to involve a structural engineer as soon as you map equipment, openings, and layout changes. Early structural input keeps design grounded in reality, avoids rework, and gets you to permit and construction with confidence.

Q1: When do tenant improvements trigger a structural review in commercial buildings? A1: Tenant improvements trigger structural review when they change load paths or increase demand. Common triggers include higher live/dead loads, new mezzanines, roof penetrations, large openings, removing bracing walls, rooftop equipment, suspended features, and occupancy changes. If your scope affects gravity or lateral systems, hire a structural engineer to verify capacity and detailing.

Q2: When should I hire a structural engineer for a tenant improvement project? A2: Hire a structural engineer early—during test fits or schematic design—whenever you add rooftop units, create openings, introduce suspended loads, increase live loads, plan a mezzanine, or alter walls. They review existing drawings, analyze framing and lateral systems, design reinforcing and anchorage, provide stamped documents for permit, and coordinate with MEPs.

Q3: What tenant improvement items in restaurants, gyms, retail, and offices usually need engineering? A3: Restaurants: heavy RTUs, grease hoods and ducts, walk-in coolers, floor trenches. Gyms: free-weight areas, racks, TRX rigs, climbing walls, vibration control. Retail: high-density racking, large signage, new storefront openings. Offices: file rooms, server racks, new stairs. A structural engineer assesses loads, anchorage, and openings to keep tenant improvements safe.

Q4: How do rooftop units and suspended features affect structural permitting? A4: Rooftop units and suspended features add concentrated loads and require engineered seismic and wind anchorage. Expect structural calculations for curbs, dunnage, and deck reinforcing, plus stamped details for ceiling attachments, hoods, signage, and rigs. To avoid permit delays and field rework, hire a structural engineer to design and document these supports.

Q5: What permitting documents should I prepare, and how can a structural engineer help? A5: Start with as-builts, prior TI records, and rooftop equipment logs. Obtain accurate equipment weights and locations, coordinate penetrations with framing lines, and include seismic/wind anchorage details. Many jurisdictions require special inspections. A structural engineer assembles stamped calculations and details and aligns submittals with AHJ expectations, reducing review cycles.

Q6: In multi-tenant buildings, what extra structural issues should I plan for before I hire a structural engineer? A6: Watch cumulative roof loads from multiple RTUs, demising walls that act as shear or collector elements, and penetrations through shared slabs or roofs. Consider vibration and noise isolation between tenants and parapet signage loads. Coordinate across leases and with the landlord’s engineer; a structural engineer can model capacity and phase work.

Foundation Movement 101: When a Crack Is Cosmetic vs. a Structural Problem (and When to Call a Structural Engineer)

Jan 26, 2026 | Beyond the Blueprint

Foundation Movement 101: When a Crack Is Cosmetic vs. a Structural Problem (and When to Call a Structural Engineer)

Found a crack in your foundation or drywall and wondering if it’s harmless or a warning sign? For one- and two-family dwellings, understanding foundation movement can help you prioritize repairs and know when it’s time to call a structural engineer. This guide explains what different cracks mean, the tests you can do yourself, and clear thresholds for when to hire a structural engineer.

Why Foundations Move in the First Place

Homes move because soils move. Common drivers include:

• Differential settlement: One part of the foundation sinks more than another due to variable soil bearing capacity or compaction.
• Heave: Expansive clays swell with moisture and push upward; frost can cause seasonal heave in cold climates.
• Lateral soil pressure: Backfilled soil or high groundwater pushes basement walls inward.
• Moisture swings: Poor drainage, plumbing leaks, or over-irrigation create cycles of shrink-swell.
• Trees and landscaping: Roots can desiccate (dry out) soils near footings; heavy planting can change water patterns.
• Construction and material behavior: Concrete shrinks as it cures; masonry and concrete also exhibit temperature-related expansion/contraction.

Understanding these drivers helps you judge whether a crack is a cosmetic byproduct of normal behavior or a symptom of structural distress.

Common Foundation and Wall Crack Types—and What They Often Mean

Cracks tell stories. Here’s how to read them in one- and two-family dwellings.

1) Hairline or Map (Spiderweb) Cracks in Slabs

• Appearance: Very thin, often random patterns.
• Likely cause: Concrete shrinkage during curing or surface drying.
• Usual significance: Cosmetic, especially if not widening or allowing water in.
• Watch for: Widening over time, trip hazards, or water penetration.

2) Vertical Cracks in Poured Concrete Foundation Walls

• Appearance: Straight or wandering line, roughly vertical, often near mid-span between corners.
• Likely cause: Shrinkage or minor settlement.
• Usual significance: Often cosmetic if narrow and stable.
• Watch for: Active widening, offset (one side higher than the other), or leakage.

3) Diagonal Step Cracks in Masonry (CMU or Brick) Walls

• Appearance: Stair-step pattern following mortar joints, often starting at corners or openings.
• Likely cause: Differential settlement, footing rotation, or localized soil changes.
• Usual significance: Can be structural—especially if wide, growing, or paired with wall displacement.
• Watch for: Doors/windows racking, sloped floors, and misalignment near the crack.

4) Horizontal Cracks in Basement CMU Walls

• Appearance: Horizontal line mid-height or upper third of wall.
• Likely cause: Lateral soil or water pressure pushing the wall inward.
• Usual significance: Structural concern—frequently associated with bowing.
• Watch for: Measurable inward bulge, dampness, or efflorescence (white powdery deposits).

5) Corner Pops at Brick Veneer

• Appearance: Small triangular crack where slab corner and brick veneer meet, often a chipped-off concrete corner.
• Likely cause: Differential movement between brick masonry and concrete due to thermal or moisture effects.
• Usual significance: Usually cosmetic, affecting aesthetics but not structural performance.
• Watch for: Water intrusion paths or continued spalling.

6) Cracks with Displacement (Offset)

• Appearance: One side of the crack sits higher or farther out than the other.
• Likely cause: Active settlement, heave, or shear movement.
• Usual significance: Structural red flag—offset suggests load path disruption.
• Watch for: Progressive change, tripping edges, and binding doors/windows.

7) Slab Cracks Along Control Joints

• Appearance: Straight cracks along saw cuts or tooled joints.
• Likely cause: Intended crack path for shrinkage control.
• Usual significance: Typically expected and cosmetic.
• Watch for: Excessive widening, vertical displacement, or uneven slabs.

Interior Clues That Support Your Diagnosis

Pair crack observations with interior symptoms:

• Doors and windows sticking or latching poorly
• Gaps at trim, baseboards pulling away
• Drywall cracks radiating from window/door corners
• Sloping or bouncy floors
• Tile grout cracking, especially repeating in the same line
• Chimney separation from siding or roofline
• New water entry, dampness, or musty smells

A single cosmetic crack might not matter. A pattern—crack types plus interior symptoms—often does.

Quick At-Home Tests to Gauge Severity

Use these simple checks to track behavior over time:

• Measure width: Note the widest point. As a rule of thumb, thin paper (~0.004–0.006 in.) fits hairlines; business cards (~0.014 in.) for slightly wider. Document widths monthly.
• Track change: Place a dated piece of masking tape next to the crack with measured width. Re-check at regular intervals (monthly/seasonally).
• Check displacement: Use a straightedge or credit card edge across the crack to feel for steps. Any measurable offset is more concerning than width alone.
• Plumb and level: Hang a plumb bob to check leaning walls; use a 4-ft level or laser to find floor slopes.
• Moisture: After rain, look for dampness at cracks, basement walls, and slab edges. Persistent moisture escalates risk.

If measurements show active growth or paired symptoms (e.g., widening diagonal step cracks plus door binding), it’s time to hire a structural engineer.

When a Crack Is Probably Cosmetic

Cosmetic does not mean “ignore,” but it often means low risk:

• Hairline shrinkage cracks in slabs or vertical hairlines in poured walls that stay stable over multiple seasons.
• Control-joint cracks that follow the joint line without displacement.
• Isolated corner pops in brick veneer without water intrusion.
• Minor drywall cracks at window/door corners that don’t recur after repainting and seasonal adjustment.

These can often be sealed to control moisture and improve appearance. Keep photos and notes to confirm stability.

When to Hire a Structural Engineer

You should hire a structural engineer when any of the following apply:

• Crack width exceeds about 1/4 inch, especially for diagonal step or horizontal cracks.
• There’s any noticeable displacement (one side higher/outward), even if the crack looks narrow.
• Horizontal crack in a basement CMU wall, particularly with inward bowing.
• Multiple cracks that form a pattern (e.g., stair-steps radiating from corners, or matching cracks on opposite sides of the home).
• Rapid change: A crack grows wider, longer, or shows new offset over weeks to months.
• Recurrent water intrusion or dampness tied to crack locations.
• Significant interior symptoms: doors/windows out of square, sloping floors, or widespread drywall cracking.
• History of plumbing leaks, poor drainage, or expansive soils with visible heave/settlement.
• Prior foundation repair with new or worsening movement.
• Chimney leaning or separating from the house.

A structural engineer will evaluate load paths, soil context, and material behavior to identify root cause—not just patch symptoms. They can specify appropriate, cost-effective repairs and help you avoid overspending on unnecessary work.

Common Repair Paths (Engineer-Designed)

• Epoxy injection: Bonds non-moving structural cracks in poured concrete; restores some strength but not suited to active movement or water sealing alone.
• Urethane injection: Flexible seal for active or wet cracks; better for leak control than structural strength.
• Carbon-fiber straps or steel bracing: Stabilizes minor to moderate bowing walls from lateral pressure.
• Underpinning (helical or push piers): Transfers loads to deeper, stable soils to address settlement.
• Slabjacking/polyjacking: Lifts sunken slabs (garages, patios, walkways); not a substitute for foundation underpinning.
• Drainage and waterproofing: Exterior grading, downspout extensions, french drains, sump systems.
• Soil moisture management: Especially for expansive clays—consistent irrigation practices, tree root barriers as designed by professionals.

Repairs should match the diagnosis. That’s the value of engaging a structural engineer: the right fix the first time.

Prevention and Maintenance: Your First Line of Defense

Small actions greatly reduce foundation movement:

• Control roof runoff: Clean gutters twice yearly and extend downspouts 5–10 feet away from the foundation.
• Improve grading: Aim for 6 inches of fall in the first 10 feet away from the house, where site conditions allow.
• Manage irrigation: Avoid over-watering near foundations; maintain steady moisture rather than cycles of wet/dry, especially on expansive soils.
• Watch landscaping: Keep large trees an appropriate distance from the foundation; consider root barriers if recommended by a structural engineer or arborist.
• Fix plumbing leaks promptly: Under-slab leaks can soften soils and accelerate settlement.
• Seal cracks: Prevent water entry, freeze-thaw damage, and further deterioration—even if purely cosmetic.

What to Expect When You Call a Structural Engineer

• Assessment: Visual survey, measurements, and moisture/level checks; may include elevation surveys to map floor movement.
• Diagnosis: Identification of movement type (settlement, heave, lateral pressure) and driving factors (drainage, soils, plumbing).
• Recommendations: Prioritized plan—from drainage fixes to engineered repairs—and when to monitor vs. act.
• Documentation: Report you can use to solicit bids or support real estate transactions.

Tip: Gather your photos, measurements, and timeline before the visit. Good records make diagnosis faster and more precise.

Quick Reference: Cosmetic vs. Structural

• More likely cosmetic:
  • Hairline vertical shrinkage cracks without offset
  • Map cracking in slab surfaces with no trip edges
  • Control-joint cracks that haven’t grown
  • Brick veneer corner pops without moisture issues
• More likely structural:
  • Horizontal cracks in CMU basement walls, especially with inward bowing
  • Diagonal step cracks wider than about 1/4 inch or getting bigger
  • Any crack with vertical or lateral displacement
  • Patterns of interior distress: sticking doors, sloped floors, widespread drywall cracks
  • Water intrusion linked to cracks and wall movement

When in doubt, hire a structural engineer. The cost of a professional evaluation is small compared to the price of unnecessary repairs—or the risk of letting a real problem grow.

Bottom Line

Cracks are common in one- and two-family dwellings, but not all cracks are equal. Distinguish cosmetic from structural by considering width, direction, displacement, location, change over time, and accompanying symptoms. Improve drainage, stabilize moisture, and document conditions. And when the signs point to movement—not just materials—hire a structural engineer to diagnose and design the right fix.

Q1: What is foundation movement and what causes it in homes? A1: Foundation movement is shifting or rotation of footings, slabs, or walls due to soil changes. Common causes include differential settlement, expansive clays swelling/shrinking with moisture, lateral soil pressure, poor drainage, plumbing leaks, frost heave, and nearby trees. When signs are unclear, consult a structural engineer for diagnosis.

Q2: How can I tell if a foundation crack is cosmetic or structural? A2: Cosmetic cracks are typically hairline, vertical, or along control joints without displacement and don’t grow over seasons. Structural cracks are wider, change over time, show vertical/lateral offset, or align with other symptoms like sloped floors and sticking doors. When in doubt, hire a structural engineer to assess risk.

Q3: Which foundation crack types are red flags requiring a pro? A3: Red flags include horizontal cracks in CMU basement walls (often with inward bowing), diagonal step cracks wider than about 1/4 inch, any crack with offset, and patterns appearing on multiple walls. Paired interior issues—sticking windows, racked doors, or sloping floors—also warrant calling a structural engineer promptly.

Q4: What simple at-home checks help evaluate crack severity? A4: Measure crack width at the widest point and track monthly; note any growth. Check for displacement using a straightedge, and monitor moisture after rain. Use a level or laser to identify sloping floors and a plumb bob for wall lean. If measurements show active change, hire a structural engineer.

Q5: When should I hire a structural engineer for foundation issues? A5: Hire a structural engineer if cracks exceed 1/4 inch, display any offset, or are horizontal with wall bowing. Also act when multiple cracks form a pattern, changes occur quickly, water intrusion is present, or interior symptoms emerge. Professional evaluation prevents misdiagnosis and ensures cost-effective, code-compliant repairs.

Q6: What repairs might a structural engineer recommend for foundation movement? A6: Depending on cause, repairs may include epoxy or urethane injection, carbon-fiber or steel bracing for bowing walls, underpinning with helical or push piers for settlement, slabjacking for sunken slabs, exterior drainage improvements, waterproofing, and soil moisture management. The right solution follows a thorough structural engineer diagnosis.

Q7: How can I prevent foundation movement in one- and two-family dwellings? A7: Maintain drainage: clean gutters, extend downspouts 5–10 feet, and ensure positive grading. Manage irrigation to avoid wet-dry cycles, especially on expansive soils. Keep large trees at appropriate distances, repair plumbing leaks quickly, and seal minor cracks to deter moisture. Monitor conditions and document changes seasonally.

Balconies, Thermal Breaks, and Long-Term Durability in Multi-Family Buildings: A Structural Engineer’s Guide

Jan 19, 2026 | Beyond the Blueprint

Balconies, Thermal Breaks, and Long-Term Durability in Multi-Family Buildings: A Structural Engineer’s Guide

Balconies define the lifestyle and market appeal of multi-story condos and apartments—but they also concentrate risk. From thermal bridges that sap energy and spawn condensation to corrosion that compromises safety, a balcony is where envelope and structure collide. A structural engineer is central to resolving these competing demands. Whether you’re planning a new project or managing an existing one, knowing when to hire a structural engineer can be the difference between decades of trouble-free performance and costly, disruptive repairs.

The Balcony Challenge in Multi-Family Housing

In multi-family buildings, balconies must simultaneously:

• Carry gravity, wind, and occupancy loads without excessive deflection or vibration.
• Resist water, freeze-thaw cycles, and chloride intrusion that can corrode reinforcement and anchors.
• Maintain the building’s thermal and air barrier continuity to control energy loss and condensation.
• Provide durable anchorage for guardrails and finishes.
• Satisfy evolving energy, fire, and structural codes.

Neglecting any one of these can shorten service life. Structural engineering input at design—and proactive inspection during operations—keeps performance balanced across all disciplines.

Thermal Bridges 101: Why Slab Edges Matter

A thermal bridge is a high-conductivity pathway that lets heat bypass insulation. At balconies, the most common thermal bridge occurs where a concrete floor slab extends outdoors. Consequences include:

• Increased heating and cooling demand.
• Cold interior surfaces at slab edges that can trigger condensation and mold.
• Discomfort near exterior walls and doors.
• Accelerated deterioration: moisture plus cycling temperatures amplify cracking, spalling, and reinforcement corrosion at the transition.

Energy codes increasingly target these losses. Detailing to interrupt heat flow—without compromising structural capacity—is now standard practice in high-performance multi-family buildings.

Common Balcony Systems and Their Risks

• Cantilevered concrete slab
  • Pros: Simple geometry, solid feel, direct load path.
  • Risks: Severe thermal bridging at the slab extension; rebar corrosion and spalling if water migrates inward; challenging balcony-to-wall air/water transitions.
• Steel bolt-on or hung balcony
  • Pros: Reduced slab edge thermal bridging; easier retrofit; prefabrication potential.
  • Risks: Thermal bridging through steel fins or ledgers; corrosion of steel and fasteners; vibration and serviceability complaints if undersized; careful fireproofing and separation needed at penetrations.
• Precast or bracket-supported balcony
  • Pros: Factory-controlled quality; replaceable modules; potential to simplify envelope continuity.
  • Risks: Anchorage complexity; waterproofing at bearing points; differential movement between precast and main structure.
• Roof terraces over living space
  • Pros: Amenity and usable area without overhanging structure.
  • Risks: Waterproofing continuity at door thresholds; slope and drainage; load increase from planters and pavers; guardrail anchorage that does not puncture membranes.

Each system can succeed with careful detailing. The key is integrating structure, envelope, and MEP needs from day one.

Thermal Break Solutions and How They Work

• Thermally broken balcony connectors
  • Description: Engineered assemblies with insulation sandwiched between the interior slab and exterior balcony, coupled by high-strength bars or plates that carry tension, compression, and shear.
  • Benefits: Continuity of insulation; reduced interior condensation risk; measurable energy savings; less risk of freeze-thaw damage at slab edges.
  • Considerations: Verified fire resistance; sufficient shear/tension capacity; deflection control; coordination with rebar congestion; compatibility with firestopping and edge forms.
• Stand-off ledgers and thermal pads
  • Approach: Separate steel ledgers from the wall with structural thermal pads to reduce conductive heat transfer.
  • Considerations: Fastener design for combined shear/tension; water management around anchors; corrosion protection of steel and fixings.
• Independent framing or posts
  • Approach: Support balconies on columns or brackets that bypass the floor slab, eliminating direct penetrations of the thermal envelope.
  • Considerations: Architectural integration at ground or podium; vibration control; support footings and waterproof transitions at the building face.
• Continuous exterior insulation alignment
  • Coordinating the balcony connection so insulation remains continuous at the wall and slab edge avoids cold spots and messy transitions. A structural engineer helps ensure that shifting the support line to preserve the insulation plane does not create unanticipated eccentricities or slab edge failures.

Waterproofing and Drainage: The First Line of Defense

Water gets in where details are weakest. Priorities include:

• Positive slope: Minimum 1/4 inch per foot away from the building to shed water, not trap it at thresholds.
• Continuous membranes: Select systems (liquid-applied, sheet, or PMMA) compatible with traffic and UV exposure; protect them with wear layers or pavers on pedestals.
• Door thresholds and transitions: Pan flashing, back dams, and sill details that do not rely on sealant alone.
• Penetration control: Avoid railing post penetrations through membranes; use side-mounted guards or stand-offs with fully sealed bases and weeps where needed.
• Drip edges: Prevent water from clinging to soffits and migrating back to the wall.
• Movement joints: Provide breaks in tile or stone finishes, as well as elastomeric transitions at slab edges, to handle thermal and structural movement.
• Drainage path: Avoid ponding; include surface drains where needed and keep scuppers clear.

A structural engineer collaborates with the envelope consultant to set deflection limits that protect the waterproofing and prevent ponding that accelerates deterioration.

Corrosion and Material Choices That Extend Service Life

• Reinforced concrete
  • Use low water-cement ratio mixes and supplementary cementitious materials to reduce permeability.
  • Provide adequate cover over reinforcement; specify epoxy-coated or stainless bars in high-exposure zones (salt spray, deicing chemicals).
  • Detail drip grooves on slab edges; avoid trapped water.
  • Consider corrosion inhibitors or, in extreme environments, cathodic protection.
• Steel and fasteners
  • Hot-dip galvanizing, duplex coatings (galvanizing plus paint), or stainless steel for high-exposure anchors and rails.
  • Match fastener metals to surrounding materials to avoid galvanic corrosion.
  • Seal fastener penetrations; detail accessible replacement where lifecycle maintenance is expected.

Selecting appropriate materials with a structural engineer prevents early failures and reduces lifecycle costs.

Structural Detailing for Performance and Comfort

• Load paths and anchorage
  • Verify balcony-to-structure connections for combined shear, tension, and prying.
  • Check edge distances and concrete breakout capacities in accordance with anchor standards.
  • For thermally broken connectors, confirm shear friction and punching shear capacity at the slab-interface.
• Deflection and vibration control
  • Set serviceability limits to protect membranes, tile, and glass railings from cracking.
  • For steel balconies, tune stiffness to minimize perceptible bounce under foot traffic.
• Differential movement
  • Resolve movements between main structure, balcony, cladding, and rails. Include slip details at interfaces so waterproofing and finishes survive thermal cycles.
• Guardrail safety
  • Design rails for code-prescribed line loads and infill; confirm anchorage into structural members, not cladding or topping alone.

Inspection, Maintenance, and Reserve Planning

For existing condos and apartments, plan a structured program:

• Inspection intervals
  • At turnover/one year: Baseline photos and punch-list of waterproofing and rails.
  • Every 3–5 years: Visual survey for cracks, rust staining, spalls, loose railings, membrane wear, and ponding.
  • At 10-year milestones or after severe weather: Add selective non-destructive testing (cover meter, GPR) and targeted probes.
• Early warning signs
  • Rust stains below slab edges; hollow-sounding concrete; efflorescence; soft sealants; loose or wobbly rails; interior moisture or cold spots near slab edges.
• Maintenance actions
  • Renew sealants at expected lifespans; recoat steel; repair spalls and cracks; replace worn membranes; keep drains clear; avoid deicing salts that attack concrete and metals.
• Budgeting and reserves
  • Include balcony membranes, railings, coatings, and anchor replacements in long-term capital plans. A structural engineer can scope priorities, sequencing, and unit costs for reserve studies.

When to Hire a Structural Engineer

Bring in a professional early and often—during design and throughout the building’s life. Consider engaging one if you observe or plan for:

• New projects requiring thermally broken connectors or complex anchorage details.
• Renovations, balcony replacements, or upgrades to meet current energy or structural codes.
• Visible cracking, spalling, rust staining, or exposed rebar.
• Loose or corroded guardrails, or glass breakage.
• Excessive deflection, noticeable bounce, or unusual creaking.
• Water leaks at balcony doors or ceilings below.
• Persistent interior condensation at slab edges or high energy bills.

To protect safety, value, and energy performance, hire a structural engineer with multi-family experience and a track record of balcony and envelope coordination.

A Hypothetical Case-In-Point

Consider a hypothetical mid-rise apartment building experiencing winter condensation along interior slab edges. A retrofit with thermally broken steel ledger pads and failing tile replaced over a new fully adhered membrane could address the issue. If the design team tightened serviceability limits to protect finishes and added drip edges to new balcony fascias, residents would likely notice improved comfort at living room doors within the next heating season, with maintenance seeing no further leaks and reserve planning shifting from emergency repairs to scheduled coating renewals. This kind of integrated approach—structure plus envelope—is how a project resets a building’s durability trajectory.

Actionable Checklist for Developers and Property Managers

• Select a balcony system early and coordinate structure, envelope, and MEP around it.
• Use thermally broken connectors or strategies that keep insulation continuous.
• Set deflection and vibration limits aligned with finish durability.
• Detail waterproofing at thresholds, penetrations, and edges with positive slope and drip control.
• Choose corrosion-resistant materials and compatible fasteners.
• Keep rails anchored to structure, not finishes; avoid membrane punctures.
• Establish inspection and maintenance cycles; document conditions with photos.
• When in doubt, hire a structural engineer to validate assumptions and prevent costly rework.

Conclusion

Balconies are high-stakes features in multi-story condos and apartments. The right combination of thermal breaks, robust waterproofing, and thoughtful structural detailing preserves safety, comfort, and value for decades. Early integration—and timely evaluation during operations—pays for itself many times over. If your project is moving from concept to drawings, or your property shows signs of distress, hire a structural engineer to guide decisions that balance energy performance and long-term durability.

Q1: What are the biggest balcony challenges in multi-story condos and apartments? A1: Balconies in multi-story condos must carry gravity and wind loads, resist water and freeze-thaw, maintain continuous thermal and air barriers, and anchor safe guardrails—all while meeting evolving codes. Neglecting any element leads to corrosion, cracking, and leaks. Early coordination with a structural engineer balances durability, energy performance, and comfort.

Q2: What is a thermal bridge at a balcony, and why do thermal breaks matter? A2: A thermal bridge occurs where heat bypasses insulation—commonly at slab edges that extend into a balcony. Without thermal breaks, interiors suffer cold spots, condensation, and mold, while energy bills rise and edges deteriorate faster. Installing thermally broken connectors preserves insulation continuity and reduces moisture risks without sacrificing structural capacity.

Q3: How do thermally broken balcony connectors work in multi-family buildings? A3: Thermally broken balcony connectors sandwich rigid insulation between interior slab and exterior balcony, linking them with high‑strength bars or plates for shear, tension, and compression. To perform, verify load capacity, deflection limits, fire rating, and coordination with rebar and firestopping. A structural engineer ensures code compliance and constructability.

Q4: What waterproofing and drainage details extend balcony life? A4: Long-lasting balconies start with water management: 1/4 in‑per‑ft slope away from doors, continuous traffic-rated membranes, pan flashing and back dams at thresholds, drip edges, and movement joints in finishes. Avoid puncturing membranes with railing posts; side-mount guards instead. Proper deflection limits prevent ponding—coordinate criteria with a structural engineer.

Q5: When should a condo board hire a structural engineer for balconies? A5: Hire a structural engineer when you see cracks, spalling, rust stains, loose or corroded guardrails, excessive bounce, leaks at balcony doors, or persistent interior condensation at slab edges. They’ll assess anchor capacities, waterproofing failures, and thermal bridges, then prioritize repairs or upgrades to protect safety, value, and energy performance.

Q6: What inspection and maintenance plan keeps condo balconies durable? A6: Set a program: baseline inspection at turnover, visual surveys every 3–5 years, and deeper testing each decade or after severe events. Maintain sealants, membranes, and coatings; clear drains; avoid deicing salts. Document conditions with photos and plan reserves. A structural engineer can scope repairs, sequencing, and realistic lifecycle costs.

Mixed-Use Underground Parking: Where Garages Fail First—and How a Structural Engineer Prevents It

Jan 12, 2026 | Beyond the Blueprint

Mixed-Use Underground Parking: Where Garages Fail First—and How a Structural Engineer Prevents It

Underground parking beneath mixed-use projects is a tough environment for concrete and steel. Hydrostatic pressure, deicing salts, tight site constraints, and nonstop traffic all conspire to shorten service life—unless a structural engineer anticipates the risks and details for durability from day one. If you’re planning, operating, or troubleshooting a podium or basement garage, understanding where failures start and how to stop them will save costly repairs and downtime—and is a compelling reason to hire a structural engineer early.

Why Mixed-Use + Underground Makes Garages Vulnerable

Mixed-use podiums and basements concentrate many risk factors:

• High groundwater and hydrostatic uplift push water through microcracks and joints.
• Blindside or constrained waterproofing details at property lines are harder to inspect or repair.
• Deicing salts tracked in by cars accelerate corrosion of reinforcing steel.
• Complex MEP routing, penetrations, and traffic demands create leak paths and wear zones.
• Tight schedules compress curing, waterproofing, and QA/QC—raising the chance of early-age cracking and detailing mistakes.

In short, structure and waterproofing are inseparable here: if water gets in, it attacks the structure; if the structure cracks and moves, it opens paths for water.

Where Parking Garages Fail First

1. Joints and Transitions

• Expansion and construction joints, wall-to-slab interfaces, and elevator pit joints are the top leak locations.
• Missing or misaligned waterstops, poorly bonded sealants, and under-detailed corners lead to seepage and staining.

2. Penetrations and Embedded Items

• MEP sleeves, conduit, bollards, and guardrail posts can bypass membranes if not booted and sealed correctly.
• Post-installed anchors create micro-pathways when drilling fractures the substrate or hits reinforcing steel.

3. Ramps, Turn Bays, and Drive Lanes

• High wheel loads and tire shear tear up traffic-bearing membranes and wear out sealants at day joints.
• Ponding at flat spots keeps chlorides on the surface longer, accelerating freeze-thaw damage.

4. Cracks in Slabs and Walls

• Early-age shrinkage cracks in post-tensioned (PT) slabs and shotcrete or cast-in-place walls become leak channels under pressure.
• Insufficient temperature/shrinkage reinforcement and delayed curing compound the problem.

5. Drainage and Sumps

• Clogged trench drains and undersized or single-point sumps lead to localized flooding and seepage at cold joints.
• Pumps without redundancy or backup power let water rise during storms and outages.

6. Blindside Waterproofing at Property Lines

• Soldier pile/lagging interfaces, tieback heads, and laps are notoriously difficult to detail and test.
• Minor installation errors become chronic leaks after backfill and cannot be accessed later.

7. Slab-on-Grade Uplift and Basements Under Buoyant Conditions

• In high water table areas, uplift pressures cause cracking, slab heave, or water intrusion at slab penetrations.
• Inadequate anchors or slab thickness leave little margin when groundwater rises seasonally.

8. Precast Interfaces (Where Used)

• Double-tee parking systems leak at stem-to-flange joints and bearing pockets if sealants and flashings fail.

How a Structural Engineer Designs for Durability—and Dryness

A durable underground garage starts with an integrated structure + waterproofing strategy. Here’s how a structural engineer ties it all together.

1) Groundwater and Geotechnical Intelligence

• Hydrogeology and uplift: Confirm seasonal high-water levels, inflow rates, and long-term uplift pressures; design the slab and walls like a boat hull if needed.
• Base slab strategy: Choose between thickened slabs, tiedown anchors/micropiles, or tension piles for buoyancy. Include an adequate factor of safety against uplift.

2) Structural System Choices That Control Cracking

• Post-tensioned flat slabs for long spans, with strategic mild steel at openings, columns, and stress concentrations to limit crack widths.
• Reinforcement detailing for temperature/shrinkage with proper bar spacing near surfaces most exposed to chlorides.
• Concrete cover and durability classes that match your exposure—more cover and tighter crack control in salt-prone climates.

3) Concrete Mix and Detailing for Service Life

• Low water-cement ratio (typically ≤ 0.40), with supplementary cementitious materials (e.g., slag, fly ash, silica fume) for lower permeability and improved durability.
• Air entrainment where freeze-thaw is a risk; corrosion inhibitors where deicing salts are expected.
• High-quality curing (wet cure or curing compounds) to reduce early-age cracking—enforced through clear specs and site QA.

4) Waterproofing Strategy: Redundancy Over Regret

• Positive-side waterproofing on the soil-exposed face where feasible (hot fluid-applied or robust sheet membranes).
• On blindside walls, use systems compatible with substrate movement and include integral injection hose systems at critical joints for future repairs.
• Continuous waterstop systems at all cold joints; bentonite or swell strips as secondary defense.
• Traffic-bearing membranes on ramps and turning radii; slip-resistant wear layers where tire shear is high.

5) Drainage That Actually Drains

• Minimum 1–2% slopes to trench drains and area drains—verified with a survey before topping placement.
• Dual sump pumps with alternation and backup power; oil-water separators sized for inflow.
• Drainage mats behind walls to depressurize water against the membrane.
• Cleanout access for every trench and branch—no hidden choke points.

6) Corrosion Protection Beyond the Basics

• Epoxy-coated, galvanized, or stainless rebar in splash zones and leak-prone areas.
• Galvanic anodes at joints, exposed edges, and repair locations to slow corrosion at discontinuities.
• Consider targeted cathodic protection in chronic wet zones or at high-value interfaces.

7) Movement Joints That Don’t Become Gutters

• Preformed compression seals or high-performance, elastomeric joint systems rated for vehicular traffic and fuel resistance.
• Proper joint armoring and edge protection to prevent raveling under wheel loads.
• Three-dimensional joint detailing at corners, terminations, and changes in direction.

8) Penetrations and Post-Installed Hardware

• Factory-booted membrane penetrations; welded or mechanically locked flanges on sleeves.
• Coordination of MEP sleeves and embeds early to avoid unplanned core drilling later.
• For necessary post-installed anchors, specify ICC/ESR-approved adhesive or mechanical anchors with verified installation procedures and sealing details.

9) QA/QC and Special Inspections

• Pre-installation meetings with structural, waterproofing, and MEP trades to resolve conflicts.
• Mockups of wall/slab joints, blindside laps, and traffic membrane transitions.
• Holiday testing, electronic leak detection, or flood testing before concealment.
• PT stressing records, grout logs, and curing verification integrated into closeout documents.
• Third-party inspections per code and manufacturer requirements—don’t rely on visual checks alone.

Operations: Keep It Dry and Extend Service Life

Design sets the stage; operations keep the performance. A structural engineer will typically recommend:

• Salt management: Seasonal washing to remove chlorides; avoid stockpiling salt indoors.
• Drain maintenance: Quarterly cleaning of trench drains and sumps; monitor pump run times.
• Sealants and membranes: Inspect annually and renew traffic coatings on a 5–10 year cycle based on wear.
• Crack monitoring: Map, date, and measure cracks; inject active leaks with hydrophilic urethane, and epoxy-inject structural cracks per engineer’s direction.
• Ventilation: Maintain CO sensors and fans to control humidity and reduce condensation.
• Periodic condition assessments: Baseline at year 1, then every 3–5 years; increase frequency in harsh climates. If in doubt, hire a structural engineer to perform a thorough evaluation and plan targeted repairs.

Red Flags That Mean “Call an Engineer Now”

• Persistent leaks at joints or penetrations, calcite/efflorescence streaks, or rust weeping.
• Hollow-sounding concrete, spalls, exposed or rusted rebar, and delaminations.
• Ponding water that wasn’t there before or increased pump cycling post-storms.
• Scale, cracking, or debonded traffic membranes on ramps and turn bays.
• Corrosion at guardrails, bollards, or embedded plates near drive lanes.

If you see these signs, hire a structural engineer to diagnose root causes, prioritize risks, and design durable repairs before minor issues cascade.

Repair and Retrofit Playbook

When leaks or deterioration appear, well-planned repairs can reset performance:

• Injection and joint rehab: Hydrophilic urethane for active leaks; epoxy injection for structural cracks; replace joint systems with traffic-rated assemblies.
• Concrete repair: Delamination mapping, hydrodemolition as needed, proper patch materials, curing, and galvanic anodes to address the corrosion ring.
• Membrane restoration: Recoat or overlay traffic membranes; add localized waterproofing plies at ramps and columns.
• Drainage upgrades: Re-slope topping slabs, add trenches, or enlarge sumps; improve access for cleaning.
• Targeted corrosion control: Add distributed anodes or consider cathodic protection in chronic wet zones.
• Monitoring: Post-repair leak detection and periodic inspections to confirm performance.

A structural engineer can tie these steps into a phased, budget-conscious plan that limits downtime while extending the garage’s service life.

Budgeting: The Life-Cycle Argument

In pro formas for mixed-use developments, waterproofing and structural detailing sometimes get value-engineered to meet first costs. Yet data is consistent: a few extra dollars per square foot for robust membranes, drainage, crack control, and QA/QC avoids six- and seven-figure remediation within the first decade. When in doubt, hire a structural engineer to provide life-cycle cost comparisons so you can defend smarter upfront investment.

The Bottom Line

Underground parking in mixed-use buildings fails first at joints, penetrations, ramps, blindside interfaces, and anywhere drainage, detailing, or QA falls short. The best defense is an integrated approach—geotechnical understanding, crack-controlled structure, redundant waterproofing, smart drainage, corrosion protection, and rigorous inspection—led by an experienced structural engineer. Whether you’re planning a new project or fighting chronic leaks, hiring a structural engineer early will pay for itself in fewer repairs, safer operations, and a much longer service life.

Q1: Why are mixed-use underground parking garages vulnerable to failure? A1: Mixed-use underground parking faces high groundwater, hydrostatic uplift, blindside waterproofing at tight property lines, deicing salts, heavy traffic, and compressed schedules. These factors open cracks and joints, letting chlorides reach rebar. Because structure and waterproofing interact, movement creates leak paths and leaks drive corrosion—without early, integrated detailing by a structural engineer.

Q2: Where do underground parking garages fail first? A2: Garages fail first at expansion and construction joints; wall-to-slab transitions; MEP penetrations; ramps and turn bays; early-age cracks in slabs and walls; drains, sumps, and ponding zones; blindside laps at tieback heads; and, where used, precast interfaces. Each concentrates movement or water pressure, turning small detailing errors into chronic leaks.

Q3: How does a structural engineer prevent water intrusion in new underground garages? A3: A structural engineer integrates geotechnical data, groundwater levels, and uplift forces; sizes base slabs or anchors for buoyancy; controls crack widths with PT plus mild steel; specifies low-permeability concrete, adequate cover, curing, and corrosion inhibitors; and enforces QA/QC, mockups, and leak testing—stopping intrusion before backfill and traffic loads arrive.

Q4: What waterproofing and joint details best protect underground parking structures? A4: Use robust positive-side membranes where accessible; on blindside walls, select systems tolerant of movement and include injection hoses at critical joints. Detail continuous PVC waterstops and secondary swell strips, armor traffic-rated joints, and add traffic-bearing membranes at ramps and turn bays. Redundant barriers consistently outperform single lines of defense.

Q5: What drainage and corrosion controls should a structural engineer specify? A5: Provide 1–2% slab slopes to trench and area drains, dual alternating sump pumps with backup power, drainage mats behind walls, and accessible cleanouts. For corrosion, use epoxy/galvanized/stainless rebar in splash zones, galvanic anodes at repairs and edges, and targeted cathodic protection where chronic wetting persists to preserve reinforcing steel.

Q6: What maintenance extends the life of an underground parking garage? A6: Operations matter: wash salts seasonally, clean trenches and sumps quarterly, and monitor pump run times. Inspect and renew sealants and traffic membranes on a scheduled cycle, map and inject cracks, maintain ventilation and CO controls, and schedule periodic condition assessments. When deterioration appears, consult a structural engineer early for targeted repairs.

Q7: When should I hire a structural engineer for my parking garage project? A7: Hire a structural engineer at concept design to align structure, waterproofing, and drainage; before value engineering decisions; and whenever you see leaks, spalls, rust staining, ponding, or increased pump cycling. Engage one for lifecycle cost studies, repair prioritization, and phased retrofits—small, early fixes prevent expensive shutdowns later.
